CA Series CA18 Power Amplifier
from
₹0
- Stock: In Stock
- Brand: Krown
- Size: CA18
Sold: 0
Views: 31
| Technical Specifications | |
| 2Ω Stereo | 1850W X 2 |
| 4Ω Bridge | 3600W |
| 4Ω Stereo | 1650W X 2 |
| 8Ω Bridge | 2400W |
| 8Ω Stereo | 1450W X 2 |
| Cooling | Air flow from front to rear |
| Damping factor | > 280 |
| Frequency Response | 20Hz-20kHz, +0/-1.5dB |
| Input impedance (bal/unbal) | 20kΩ / 10kΩ |
| Input sensitivity | 0.775v / 1v / 32dB |
| Number of Mosfets | 40 |
| S/N rate | >= 95dB |
| THD+N | <=0.05% |
| Voltage Gain | 40.5dB |

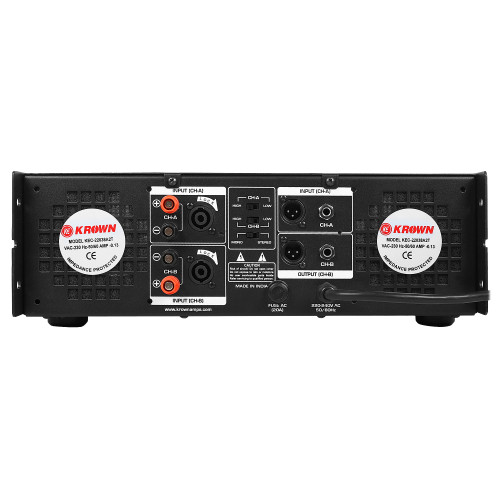

CA18 Power Amplifier
CA18 is part of the CA Series Power Amplifiers range.
Features
- Toroidal Transformer Power Supply
- High Efficiency Class H power modeules
- Channel independent power, signal and clip indicators on the front panel
- Channel independent protection warning indicators on the front panel
- XLR input and signal link connectors
- SpeakON NL4 and binding post output connectors
- Input sensitivity selector on the back panel (1.4v / 1v / 0.775v)
- Routing mode selector (stereo / bridge / parallel / crossover) on the back panel
- Mains circuit breaker on the back panel
- X-over functionality status indicator on the back panel
Specifications
| 8Ω Stereo | 1450W X 2 |
| 4Ω Stereo | 1650W X 2 |
| 2Ω Stereo | 1850W X 2 |
| 8Ω Bridge | 2400W |
| 4Ω Bridge | 3600W |
| Frequency Response | 20Hz-20kHz, +0/-1.5dB |
| THD+N | <=0.05% |
| S/N rate | >= 95dB |
| Damping factor | > 280 |
| Input sensitivity | 0.775v / 1v / 32dB |
| Input impedance (bal/unbal) | 20kΩ / 10kΩ |
| Voltage Gain | 40.5dB |
| Cooling | Air flow from front to rear |
| Number of Mosfets | 40 |
